Strain gauge, also known as strain gage, is a sensor used to measure the strain in a structure or a material by means of measuring the change in resistance. The change is resistance occurs from the force applied to the object. Strain gauge sensor can be bonded or glued to an object such as metal, plastic, wood, composite materials or can be embedded into concrete or mortar to measure strain on the surface. The gauge is grid-shaped metallic resistive foil type, which is available in a wide range of grid shapes and gauge sizes to suit a variety of applications. It is constructed by forming a grid made of fine electric resistance wire or photographically etched metallic resistance foil on an electrical insulation base and attaching gauge leads.
Bestech Australia supplies wide range of strain gauges such as foil strain gauge, waterproof strain gauge, weldable strain transducer, mold strain gauge, magnetic strain gauge, bolt strain gauge and crack detection gauges for industrial test and measurement as well as research applications. Our strain gauges are suitable for wide range of applications including measurement in extreme temperature conditions such as cryogenic or high temperature, measurement on special surfaces such as concrete, mortar, composite and asphalt, crack propagation measurement and general strain measurement in research and industry.
Foil strain gauges have been widely used for physical strain, stress, torque and force measurement in marine, aircraft, civil and mechanical engineering applications as well as in architecture, automotive testing and medical science. These strain gauges have their own limitations in temperature/ humidity, fatigue, the amount of strain, materials tested. These must be taken into considerations to select the appropriate strain gauges to achieve the best possible results.
Please download our Strain Gauge Catalog to view the complete selection of our strain gauge.
Strain Gauges Overview
AW series: High temperature weldable strain gauges
The AW series weldable strain gauges have strain sensing elements that are fully encapsulated in corrosion-resistant tubes made of stainless
BF series: Strain gauges for composites
The BF foil strain gauges are developed for strain measurement on composite materials. Similar with UBF strain gauges, the BF
BTM/BTMC series | Bolt strain gauges
Used for tensile strain measurement of bolt, the BTM/BTMS strain gauges can be easily bonded into the pre-drilled hole in
CEF Series: High and Low temperature strain gauges
Utilising special alloy for the grid and polyimide resin for the gauge backing, the CEF strain gauges is capable of
CF Series: Strain gauges for cryogenic applications
These special gauges are constructed with epoxy backing to withstand cryogenic condition. The grid of the gauges is specially selected
Concrete / mortar
Strain gauges having polyester resin backing are mainly used for measurement on concrete, mortar or rock. There is also Mold strain gauges exclusively
DD series: One-sided strain gauges
The DD series strain gauges are designed with the intention to separately measure the bending and tensile strain by bonding

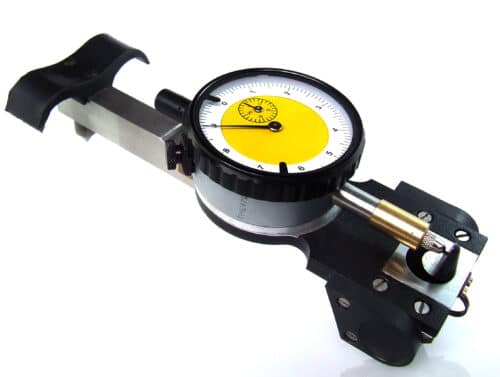

Demountable Mechanical Strain Gauge – DEMEC
A demountable mechanical strain gauge has advantages of providing accurate, reliable and cost-effective strain measurement over other products. However, the desired accuracy
DSF series: High endurance strain gauges
The DSF strain gauges are designed for high stress fatigue test application. Designed from special grid alloy with polyimide backing,
EF Series | High temperature miniature strain gauges
The EF series is a miniature foil strain gauge designed for high temperature application with polyimide resin as the backing
F Series Goblet: General Use Foil Strain Gauges
Originated from the F series strain gauges, the F series GOBLET is designed to comply with RoHS 2 directive 2011/65/EU
F Series: General Use Foil Strain Gauges
The F series general foil strain gauges use Cu-Ni alloy foils for the grid and epoxy resin for the backing.
FAC series: Crack detection gauges
The FAC crack gauges are designed with the intention to measure crack propagation speed in a metal specimen. The gauges

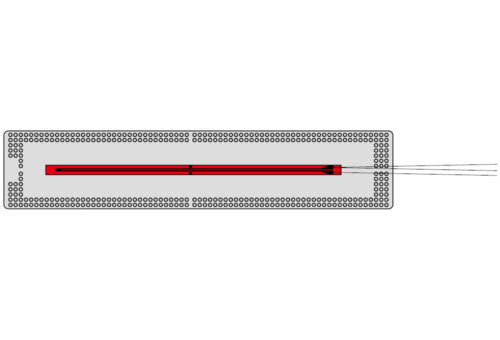

FLM/WFLM series: Metal backing strain gauges
The FLM/WFLM strain gauges are specifically designed to reliably measure strain on concrete surface. It features thin stainless-steel backings to
Foil Strain Gauges for General Purposes
In modern engineering designs, professionals pursue even lighter, more economic and efficient products to stand a chance in the fierce
GF series: Low elastic modulus strain gauges
The GF foil strain gauges are ideally suited for strain measurement on materials having low modulus of elasticity such as
