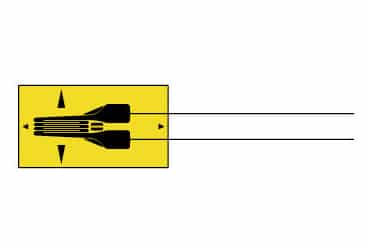

  • CEF Series: High and Low temperature strain gauges
  • CEF Series: High and Low temperature strain gauges

    Utilising special alloy for the grid and polyimide resin for the gauge backing, the CEF strain gauges is capable of operating at a wide range of temperature from cryogenic temperature to 200oC
    Operating temperature: -269oC - +200oC
    Applicable specimen: Metal, Ceramic
    Temp. compensation materials: Mild Steel, stainless steel, aluminum
    Temp. compensation range: +196oC - +80oC
    Strain limit: 10000 x 10-6 strain

    Gauge patternModelGauge length (mm)Gauge Width (mm)Backing length (mm)Backing Width (mm)Resistance (Ω)
    CEFLA series – Single element 1 - 60.5 - 14 – 10.62.2 – 3.1120
