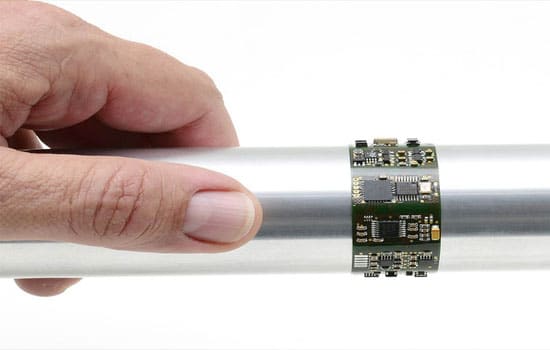

The TEL1 FLEX telemetry system is ideally used for torque measurement on restricted or tight installation area. It has an extremely flat and flexible transmitter electronics with total thickness of less than 2mm. Due to this flexible configuration, this telemetry system can be easily installed on rotating shafts or machinery. The data can be transmitted digitally and inductively with a 12-bit data resolution to the receiver unit. The unit is available with standard 0-10V signal output or optional 4-20mA current loop signal.
- High RPM shaft measurement
- 0-1200Hz signal bandwidth
- Inductive power supply and data transmission
- Strain gauge & Torque measurement
