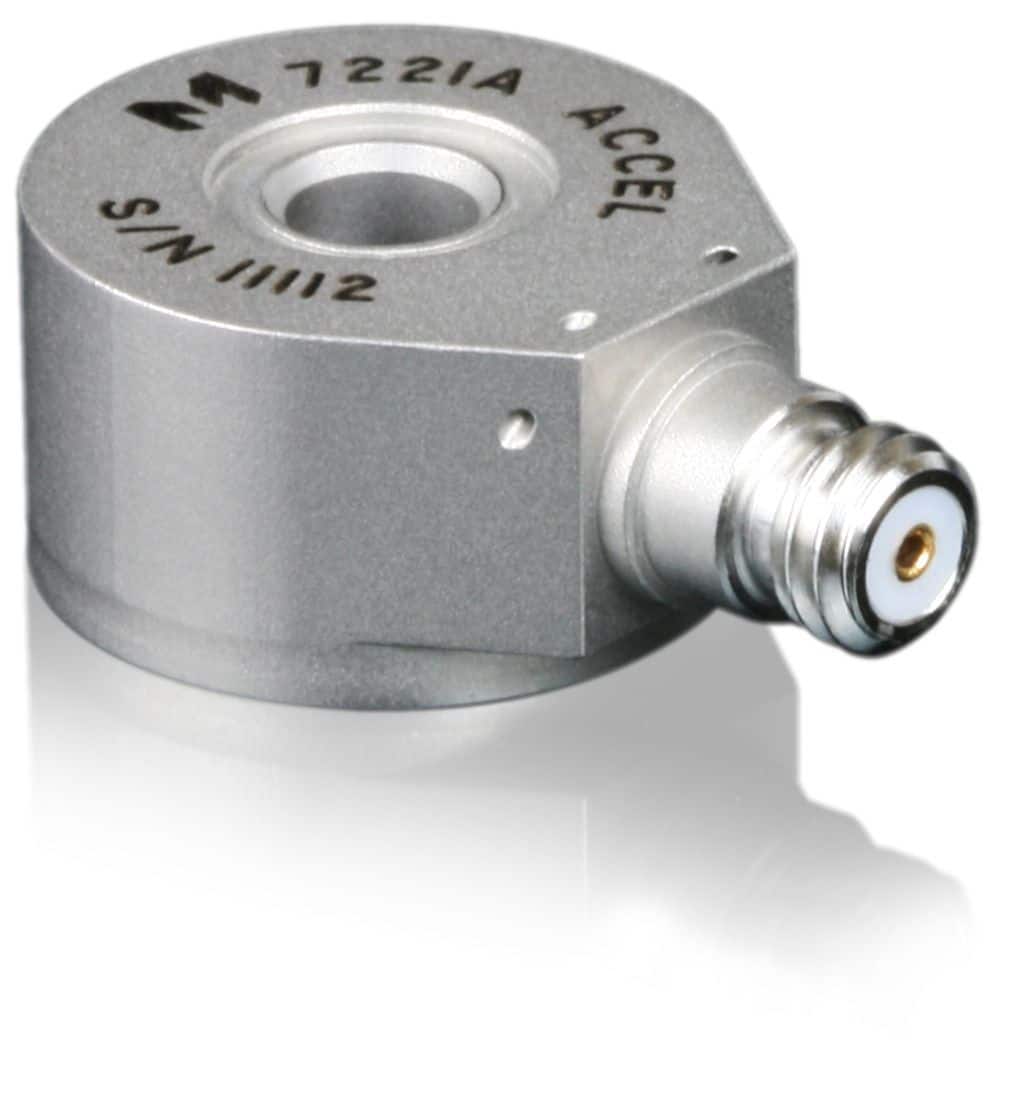

Endevco 7221A | Small piezoelectric accelerometer for general vibration measurement

The Endevco model 7221A is a small, lightweight piezoelectric accelerometer which is ideal to be used for general vibration measurement. The model is sealed hermetically and offers a wide range of bandwidth and temperature at which the device is operational. The signal ground and the outer case of the unit are connected. To make the accelerometer electrically isolated from the ground, it can be used with an isolated mounting screw. The model has a centrally located mounting bolt that allows a 360° orientation. This feature comes in very handy in many applications. A low-noise coaxial cable is also supplied with the unit for an error-free operation.

Key Features:

• Typical charge sensitivity: 10 pC/g
• Frequency response: 1 to 10 000 Hz
• Resonance frequency at 45 kHz
• Temperature range: -55˚C to +260˚C
• Measurement range: up to 2000 g
