  • DL OPENLAB-A – Automatic electric machines laboratory
  • DL OPENLAB-A – Automatic electric machines laboratory

    The DL OPENLAB-A from De Lorenzo is an automatic electric machines laboratory for teaching magnetism, electromagnetism, electromechanics and power engineering. Students assemble the most common types of electrical machines and study how each one is built and how it behaves. The structure is open, so the rotor windings, stator windings and brushes stay exposed. This lets students analyse magnetic fluxes and magnetic fields directly and learn the internal construction of each machine.

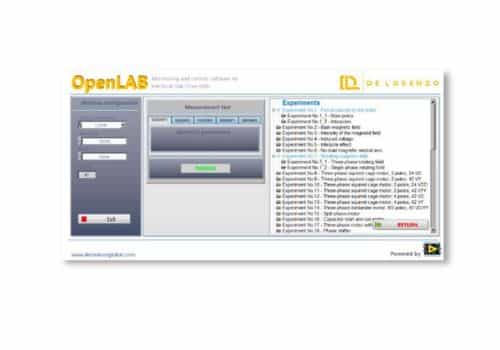

    Experiments cover asynchronous motors, DC machines and synchronous machines. The core set contains a base plate and supports with bearings. It also holds a DC stator, an AC stator, a rotor with commutator, a squirrel cage rotor and a slip-ring rotor. An electromagnetic brake applies mechanical load for the direct tests. Instruments measure mechanical data (speed and torque) and electrical data (AC and DC voltage, current and power). Software developed in LabVIEW collects these measurements through a data acquisition module. It offers single, timed and fully automatic acquisition. The software also plots the characteristic curves from the acquired data and exports the data for further analysis.

    The system operates at low voltages, and plexiglass protection guards against direct contact with the rotating machines. The laboratory suits four students working at the same time. Bestech Australia supplies the DL OPENLAB-A with on-site training and commissioning support available.

    Applications and Case Studies

    • Magnetism and electromagnetism
    • Electromechanics
    • Electric machines
    • Power engineering

    Key Features

    • Learning scope: asynchronous, DC and synchronous machines, plus magnetic field and electromagnetic induction studies
    • Class size: four students working at the same time
    • Data acquisition: single, timed and fully automatic modes through LabVIEW software
    • Measurements: speed, torque, AC and DC voltage, current and power
    • Power: 0.2 kW, low voltage operation
