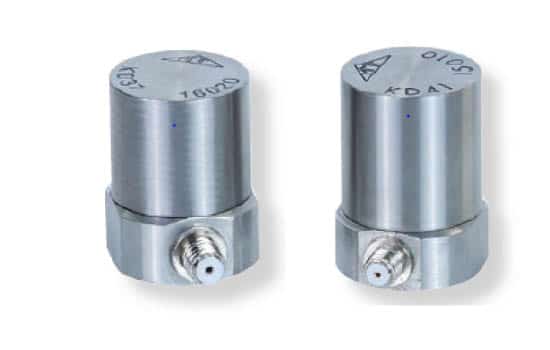

KD37 & KD41 Universal Low-cost Accelerometers

The KD37 & KD41 charge-type Piezoelectric Accelerometers are designed with compression ceramics and study stainless steel housing. They have a wide dynamic measuring range and an M5 mounting thread in base. They do not require any external power to operate.
  • Charge sensitivity:
    • KD37: 60±20 % pC/g
    • KD41: 100±20 % pC/g
  • Measuring Range:
    • KD37: +5000 / -1000 g
    • KD41: +1000 / -300 g
  • Operating temperature: -35 to 150 °C
