  • Meggitt 6240M10 | High temperature Piezoelectric accelerometer
  • Meggitt 6240M10 | High temperature Piezoelectric accelerometer

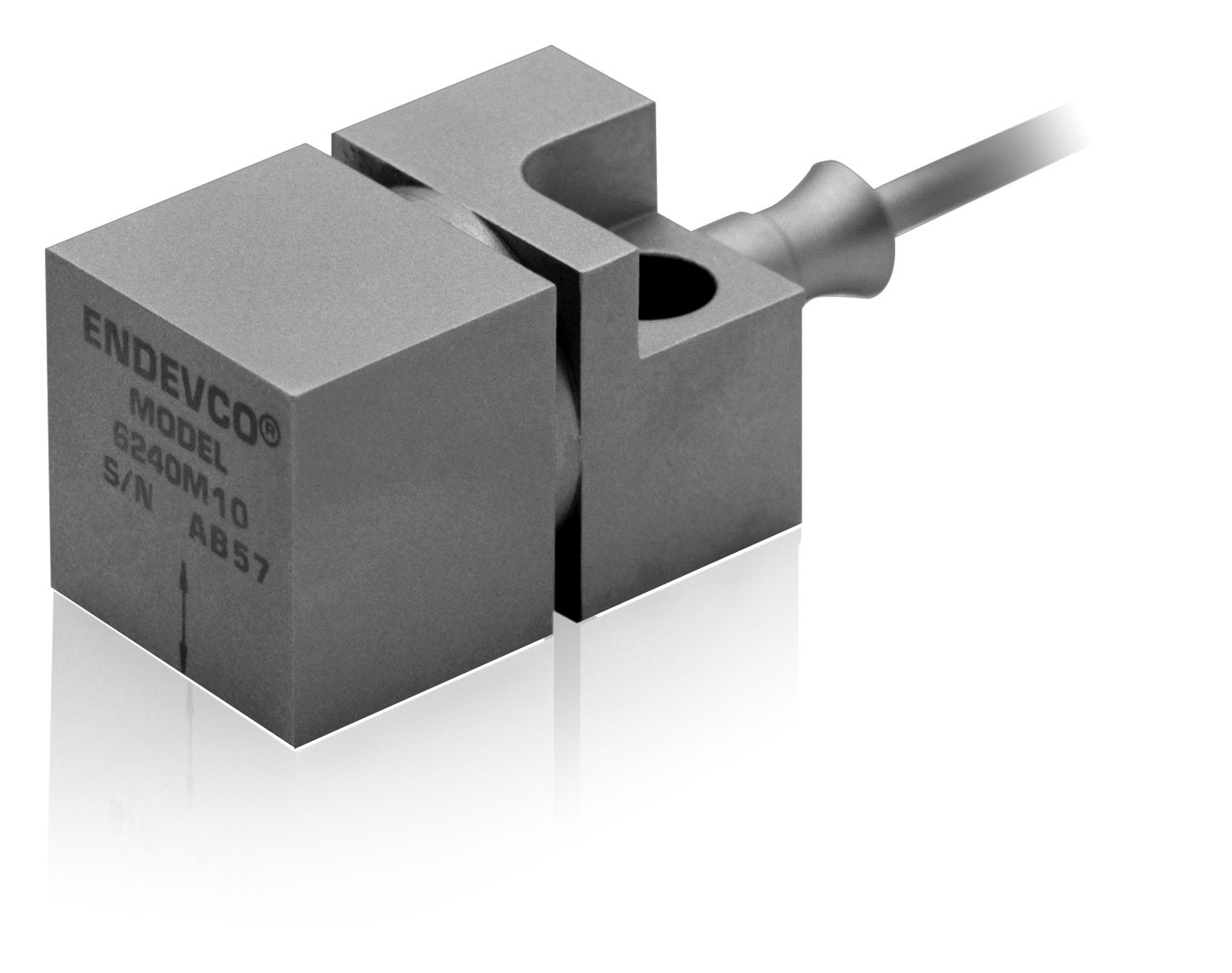

    The Meggitt  6240M10 is a piezoelectric accelerometer designed for high temperature operation such as in aircraft or ground-based gas turbines. It can withstand temperature up to 760oC under intermittent operation and up to 650C under continuous operation. This accelerometer features a relatively high sensitivity measurement for low-level vibration analysis. . An integral hardline triaxial cable terminated with a 10-32 receptacle is connected to make the electrical connection. The sensing elements and integral shield are made to isolate from the case.

    Key Features:
    • Charge sensitivity: 5 pC/g
    • Resonance frequency at 10 kHz
    • Frequency Response: 30 to 2000 Hz
    • Temperature range: -54 to 760C
    • Measurement range: up to 1000 g
