The Wifi sensors are IoT ready sensors incorporating a reliable, ultra low power Wifi technology. These new generation sensors are available in several models such as wifi accelerometer for measuring vibration, wifi inclinometer for measuring inclination or tilt and wifi shock sensor.
The Wilow sensors provide lossless data transmission feature and flexible options of power supply. Therefore, these wifi sensors are ideal for measuring tilt and vibration in structural health monitoring applications. They also offers a rapid return of investment to the users due to the low installation cost and eliminating the needs for complex wiring in sensors implementations.
This new generation Wifi sensor can reliably measure vibration, inclination and shock as It incorporates a reliable, ultra-low power and open standard Wifi technology with 2.4GHz frequency band (IEEE 801.11 b/g/n). The sensor is encased with a rugged, waterproof aluminium casing with IP67 protection.
With an embedded data logger, the WiLow sensor is capable to store up to 5 millions data point with outstanding “Store and Forward+” feature. This means data will be stored in a Wifi access point or Wifi receiver and they will be transmitted to the network at regular transmission cycle. Network disruption will not affect the data transfer as they will be re-transmitted to the network on the next transmission cycle. This creates a lossless data transmission feature that avoid loss of invaluable data
The WiLow Iot ready sensor also offers smart and flexible power supply that is compatible with USB or solar panel. The WiLow shock sensor, in particular, incorporates a smart shock detection (SSD) technology that wake up the sensors upon shock detection above a certain threshold. This further reduces the sensors’ power consumption and the sensors can be used reliably for long-term monitoring in a remote location
Wifi Sensors for IoT applications Overview

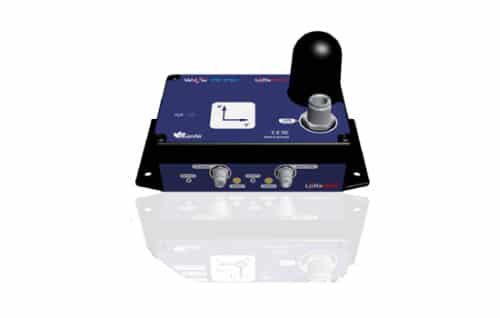

Beanair Wilow Lorawan Hi-Inc | ultra-low power wireless inclinometer
The Beanair Wilow Lorawan Hi-Inc is an ultra-low-power inclinometer with LoraWan technology that provides up to 15 km of wireless
Beanair Wilow Lorawan X-Inc | Ultra-low power combo sensors
The Beanair Wilow Lorawan X-Inc ultra low power inclinometer features LoraWan technology that provides up to 15 km of wireless

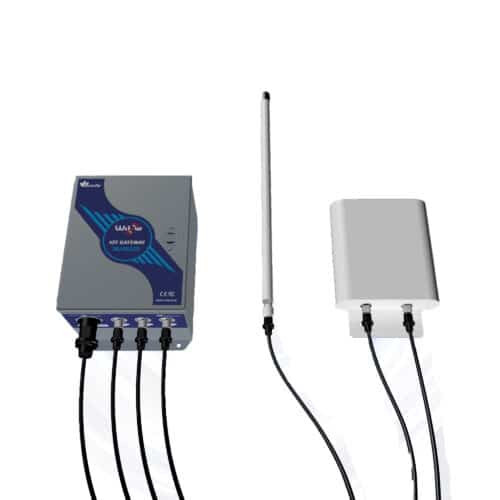

Wilot IoT Gateway
The Wilow® IOT Gateway is a ruggedized outdoor IOT gateway encapsulated in IP66 protective casing to connect with Beanair Wilow®
Wilow AX-3D | Wifi Vibration Sensor
The Wilow AX-3D is an ultra low power (ULP) wifi vibration sensor with built in data logger. The wifi accelerometer
Wilow AX-3DS | Wifi Shock Sensor
The Wilow AX-3DS is an ultra low power (ULP) wifi accelerometer with built in data logger dedicated for shock measurement.

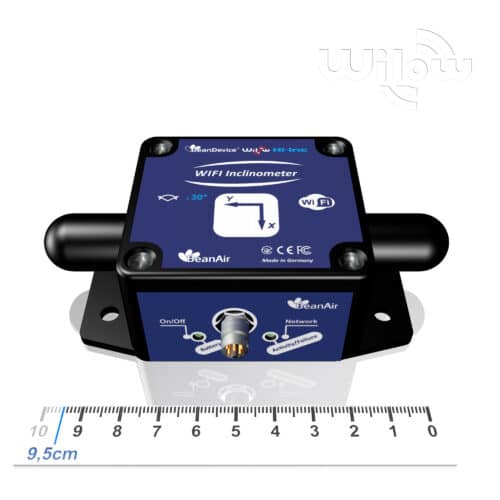

Wilow HI-INC | Wifi Inclinometer
The Wilow HI-INC is an ultra low power (ULP) wifi inclinometer with built in data logger. The wifi inclinometer is
Wilow X-INC | Wifi Combo Sensor for Vibration and Tilt measurement
The Wilow X-INC is an ultra low power (ULP) wifi sensor with built in data logger that are designed for
