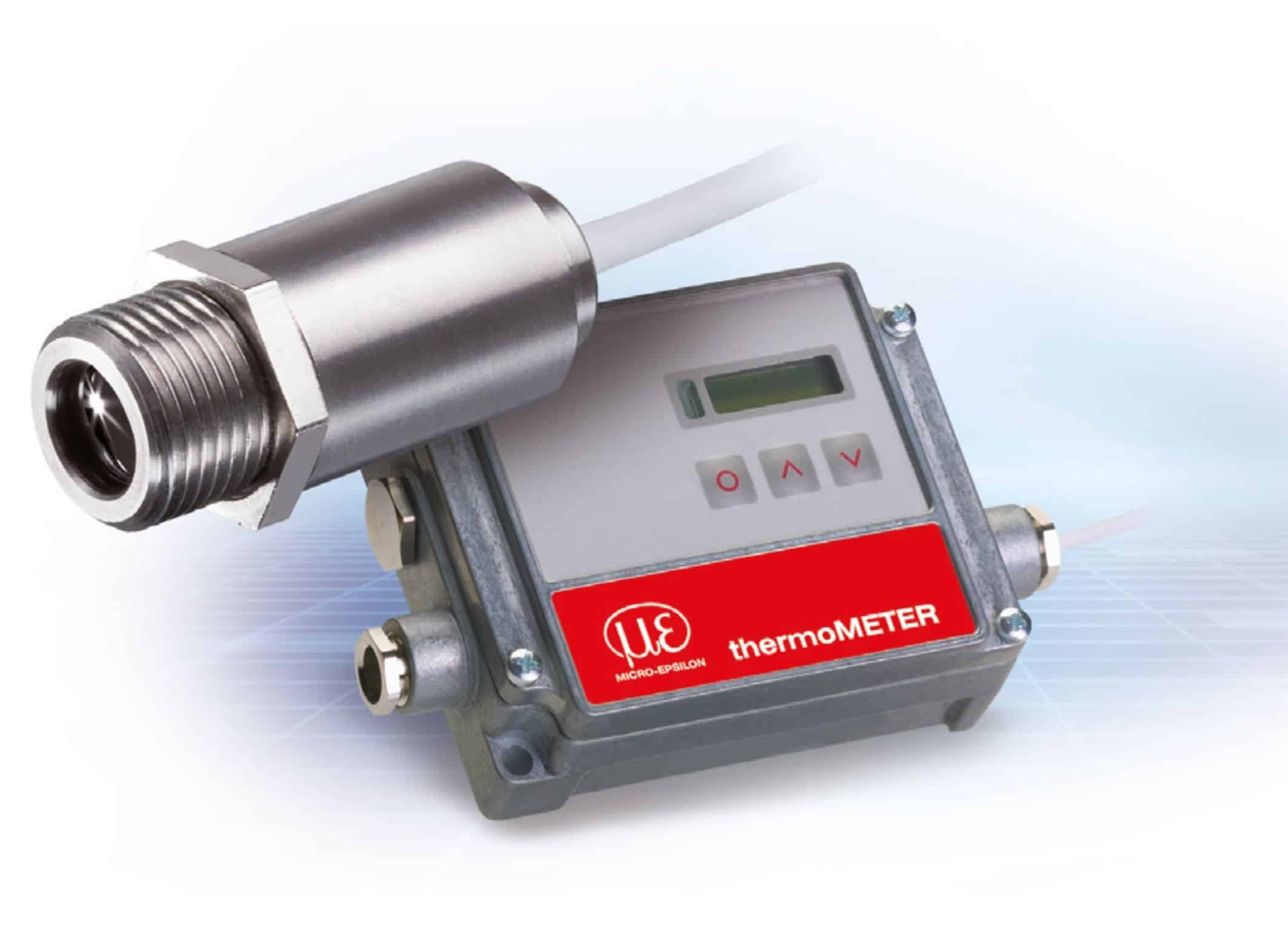

thermoMETER CTRatio | Glass fiber Ratio Pyrometer
The CTRatio ratio pyrometer utilises the two-color pyrometer measurement principle to accurately measure the temperature of hot objects. As it takes the ratio of the operating wavelength, the measurement is unaffected by external environment such as smoke, fog, partially concealed or moving objects. This also minimize the error due to the unknown emissivity value at high temperature. The sensor is integrated with laser sighting spot size with high optical resolution. It can be operated at hot ambient temperature of 250C without cooling.
- Measurement range: 700C – 1800C
- Response time: 5ms
- Spectral range: 0.7-1.1µm.
- Optical resolution: 40:1
