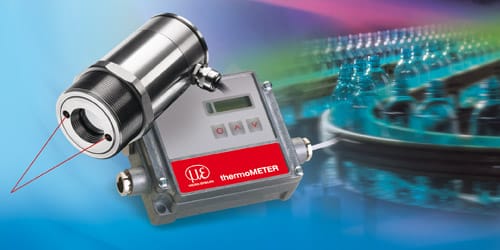

thermoMETER CTLaserM1/M2 | Infrared sensor with laser sighting for metal industry

The thermoMETER CTM1/M2 is an infrared temperature sensor with short operating wavelength equipped with laser sighting capability. The short operating wavelength compensates for the likely error in determining the value of object emissivity at high temperature. This is typically encountered in metal processing applications such as welding, soldering, sintering and measurement of metal oxides or ceramic materials. The laser is automatically switched off when the sensor operates at the ambient temperature above 50C.

Key features:

• Measurement range: 485C – 2000C
• Response time: 1ms
• Spectral range: 1 to 1.6µm
• Optical resolution: 150:1 to 300:1
