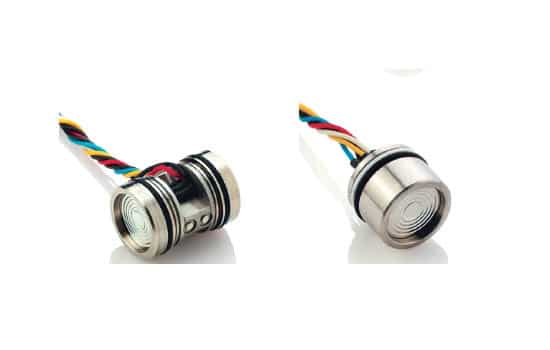

Series 10 Pressure Transducer with High Sensitivity
The series 10 pressure transducers are rugged and highly flexible transducers with high sensitivity. The pressure transducer uses a high-sensitivity piezoresistive silicon chip as a sensing element, which is protected by a fully-welded stainless steel housing shielding against ambient influences. It is delivered with a laser-welded media isolation diaphragm. The application areas of this pressure transducer include level technology, pneumatics, hydraulics, avionics, etc.
- Typical Output: 75 to 200 mV
- Pressure Ranges: -1 to 1000 bar
- Operating temperature: -55 to 150 °C
- Accuracy: 0.25 %FS
