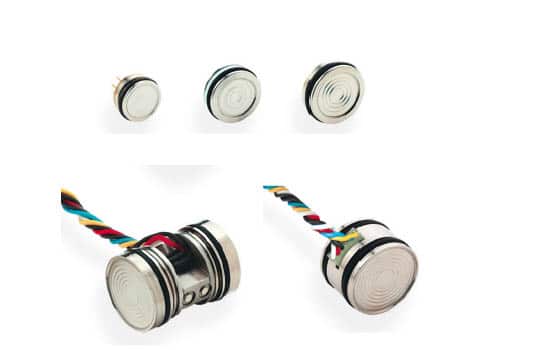

Series 3L to 10L Pressure Transducers with Laser Welded Diaphragms
The 3L to 10L Series Piezoresistive OEM Pressure Transducers have smaller capsule dimensions and crevice-free diaphragms for improved performance and long-term stability. The transducer offers a floating O-ring mounting to minimise errors caused by mechanical stresses imparted to the transducer housing. The housing consists of piezoresistive silicon pressure sensor and a small quantity of oil to facilitate efficient transfer of pressure from the diaphragm to the sensor. Calibration data is provided with the transducer for the user to ensure performance within specifications.
- Pressure ranges: -1 to 1000 bar
- Accuracy: 0.25 %FS
- Typical Output: 75 to 200 mV
- Operating temperature: -20 to 100 °C
