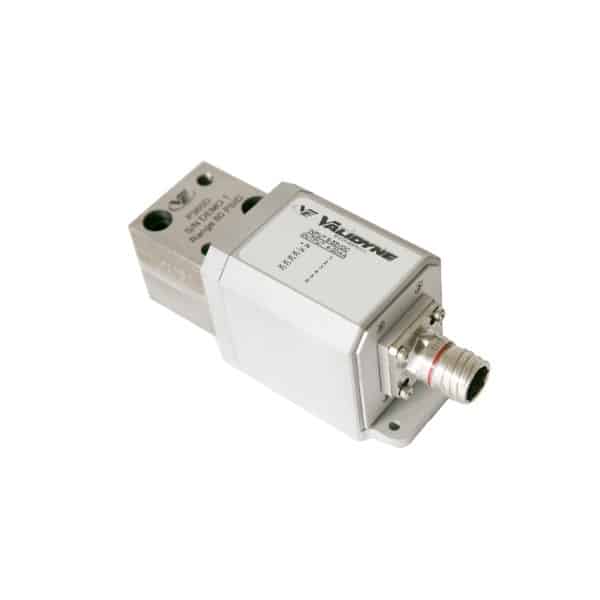

P55 – Rugged differential pressure transmitter

Validyne P55 differential pressure transmitter is suitable for industrial low-pressure measurement in an environment that has fluctuating temperature and high vibration. It provides superior signal stability due to its variable capacitance sensing element. This rugged differential pressure sensor can be used for measurement in both liquid and gaseous medium, and is also available with optional inconel and hastelloy diaphragm for corrosive applications.

Key features:
  • Measuring range: 0.55 kPa to 22MPa (Absolute & differential)
  • Accuracy: 0.25% of Full scale
  • Able to withstand 22MPa line pressure
  • 5Vdc or 4-20mA two-wire current output

This industrial pressure transmitter has been widely used for measurement applications in:

  • Tank level measurement
  • Pressure measurement in hydraulic systems
  • Testing and R&D, such as vehicle testing, test cells, flight testing
  • Liquid chromatography
