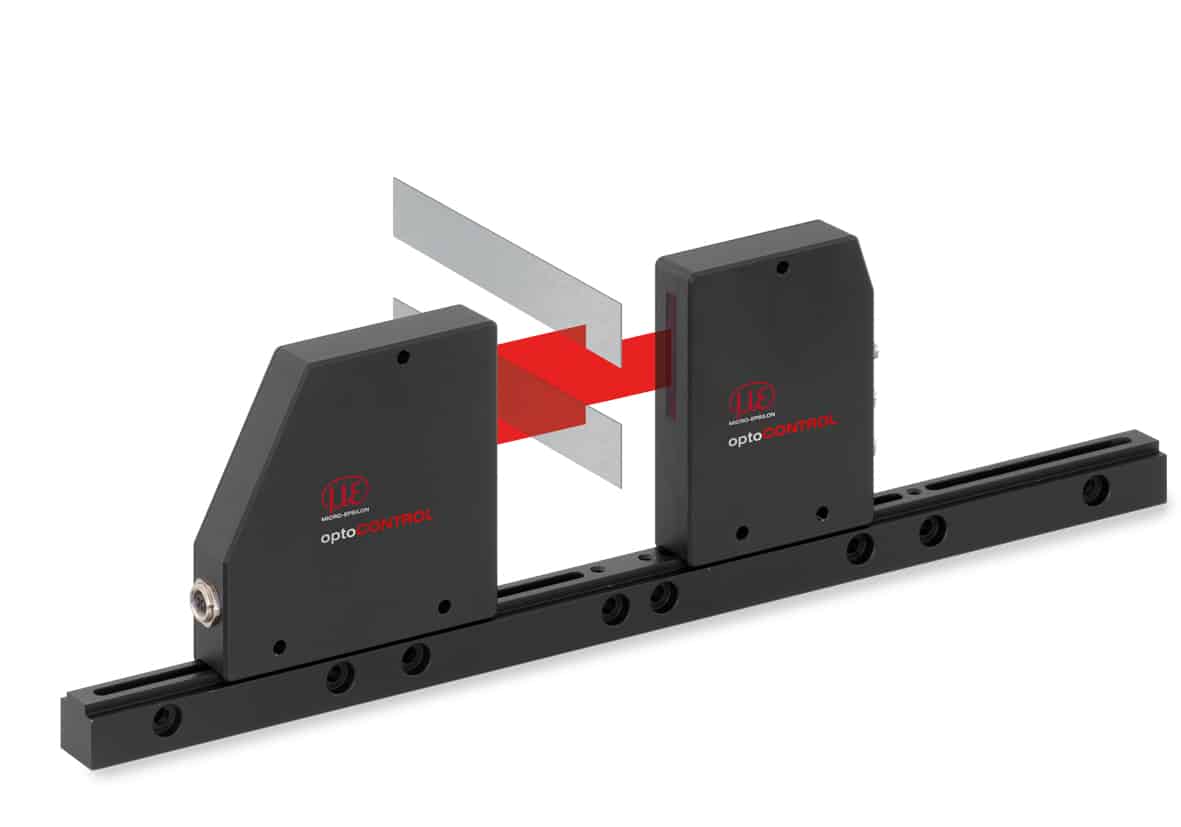

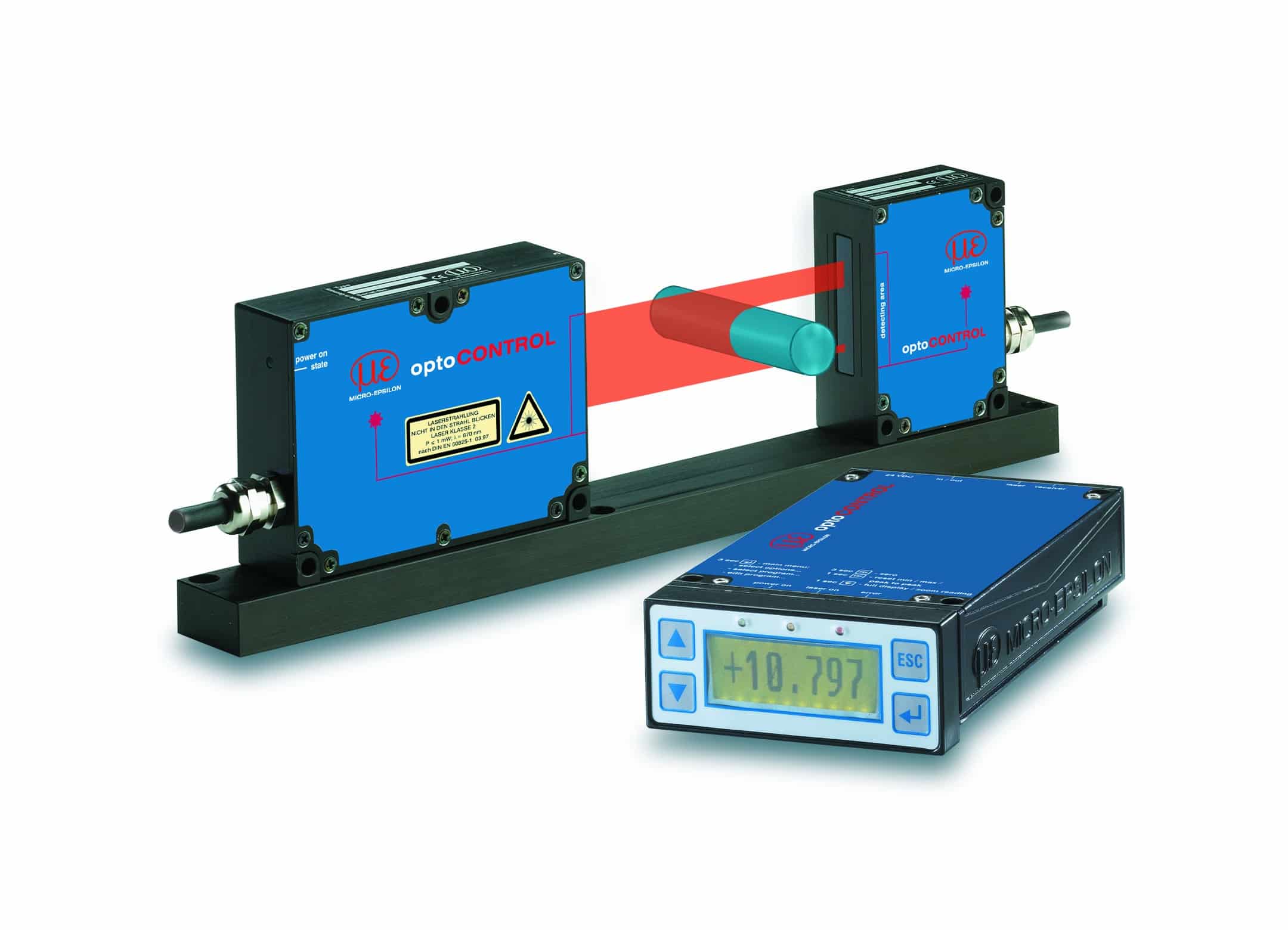

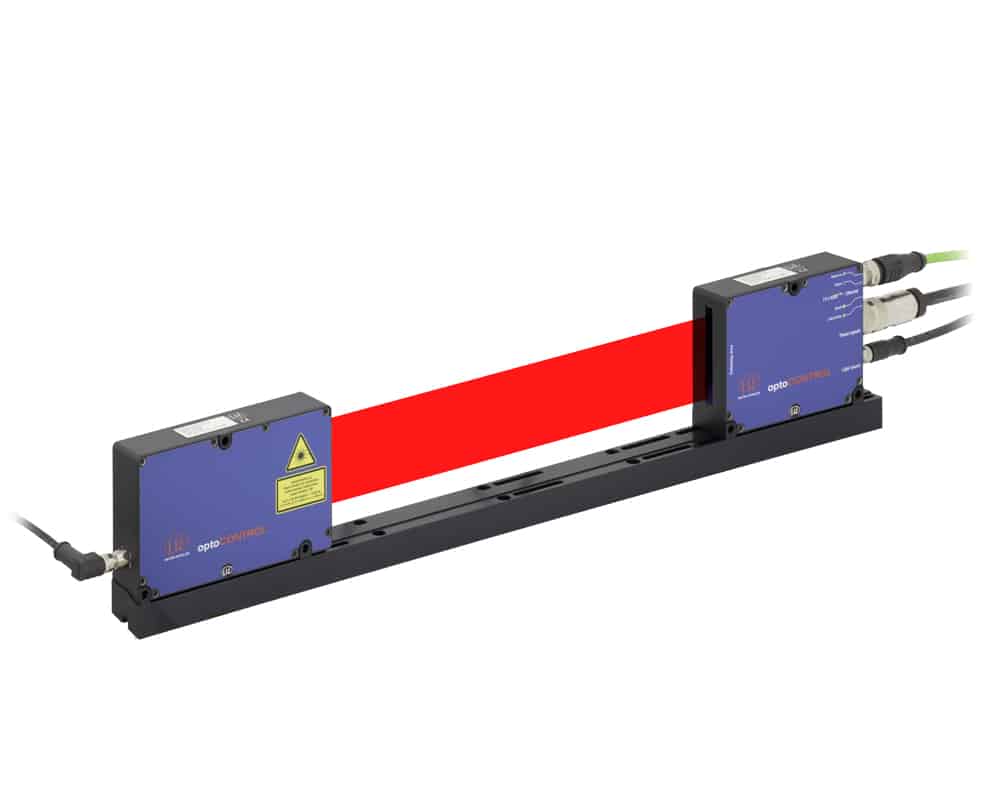

optoCONTROL 2500 | High speed laser micrometer

The optoControl 2500 is a laser based measuring micrometer with integrated high resolution CCD camera with Laser Thru-Beam technology. This high performance laser micrometer offers a very compact design with a favorable price to performance ratio. It achieves a high measuring rate for measurement of fast processes with maximum accuracy and resolution.

Key features:
  • Measuring range : 34mm
  • Linearity : 0.03% of FSO
  • Resolution: 1μm
  • Frequency Response: 2.3kHz
  • Analog  0 -10VDC and Serial RS232/RS422 interface
