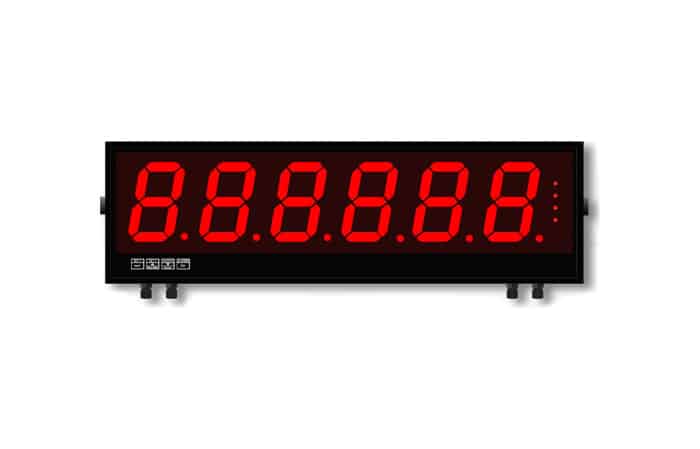

This MAGNA Serial large digit display accept RS232, RS422 and RS485 serial signal data from computers, PLC controllers, transmitters and sensors with serial output. It consists of serial data input and output board which allow extraction of data within complex data strings. This display unit is ideal to be paired with serial output transmitters from Laurel which is available with a wide range of input, both analog and pulsed.
| Display Format |  |
 |
| Case width x height | 4 Digits | 6 Digits |
|---|---|---|
| 57 mm (2.2") digits | 279 x 155 mm (11.0" x 6.1") | 376 x 155 mm (14.8" x 6.1") |
| 102 mm (4.0") digits | 434 x 196 mm (16.7" x 7.7") | 616 x 196 mm (24.3" x 7.7") |
| 150 mm (5.9") digits | 514 x 247 mm (20.2" x 9.8") | 744 x 248 mm (29.3" x 9.8") |
| 200 mm (7.9") digits | 664 x 298 mm (26.1" x 11.7") | 984 x 298 mm (38.7" x 11.7") |
| Case depth | 75 mm (3.0") | |
