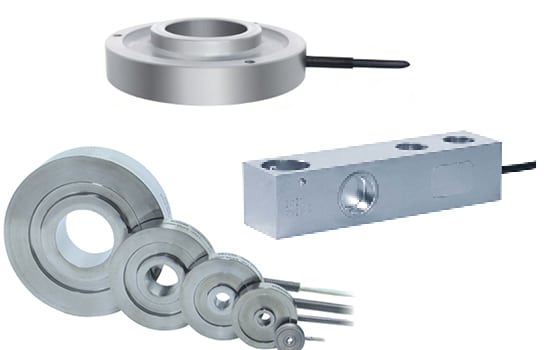

Low Profile Load Cell

Low profile load cells are suitable for applications where factors such as height restrictions and limited space are in place. These sensors have a compact design and are made of high-grade stainless steel. They are widely used for both static and dynamic measurement industrial machinery applications, including weight measurement applications and in-line force monitoring. We offer a wide range of low-profile load cells including miniature, shear web, IECEx, shear beam, center hole, center thread and Geotech load cells.
  • Measuring range: 0 to 2 MN
  • Accuracy: 0.02 % to 1 %
  • Operating temperature: -55° to 120° C
Typical applications of low-profile load cells are:
  • Adjustment of gauges
  • Force measurements on the inside of precision tools
  • Monitoring of control elements
  • Regulation of forces in medical technology
  • Control instruments in precision machinery
  • Adjustment and pre-load of devices
  • Measurement technology in aircraft construction
  • Fitting of test components and prototypes
  • Material Testing Machines
  • Airframe test fixtures
  •  Equipment engineering
  • Fully automated machining centres
  • Measuring and control devices
  • Tool engineering
  • Special mechanical engineering
