  • KS963B100-S Triaxial Seat Pad Accelerometer for vehicles and construction machines
  • KS963B100-S Triaxial Seat Pad Accelerometer for vehicles and construction machines

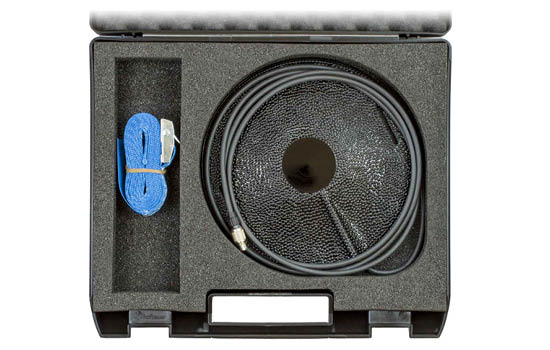

    The KS963B100-S Triaxial Seat Pad Accelerometer from MMF is designed for automotive research applications. It is intended for applications to measure the effect of the human body when it is exposed to vibration in compliance with ISO 2631, ISO 8041, ISO 10326-1, and ISO 7096 standards. The accelerometer is built into a flexible rubber pad and installed in a seat in a vehicle or a construction machine for vibration measurement. The accelerometer produces IEPE compatible output, which is ideal for reliable signal transmission, and also TEDS compatible. The vibration sensor can be removed from the pad for calibration.

    Key Features:
    • Measuring range: ± 60 g
    • Operating temperature: -20 to 80°C
    • Linear frequency range: 0,5 .. 1000 Hz
