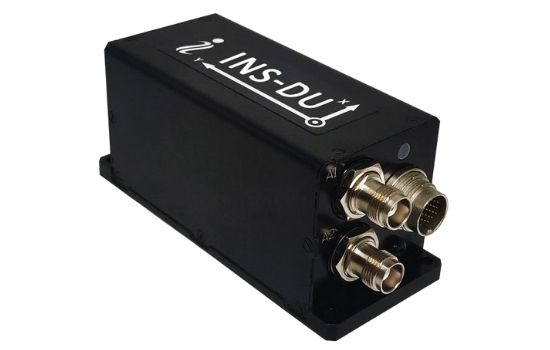

Dual Antenna GPS-Aided Inertial Navigation Systems INS-DU

The Dual antenna GPS-aided inertial navigation system INS-DU is a low cost system that accurately measures Horizontal and Vertical Positions, Heading, Pitch & Roll, velocity and accelerations. It offers direct navigation support for Pixhawk Flight Controllers as NMEA messages. The INS-DU device is specially designed to be used for marine, land and aerial applications. It is suitable to be used with odometer, r, Wheel sensor, Encoder, DMI, DVL (Doppler Velocity Log), Wind sensor, Air Speed Sensor and Doppler shift from locator (for long-term GPS denied).
PARAMETERS GPS-aided inertial navigation system INS-DU
Measurement Range: Gyroscope ±2000 deg/sec
Measurement Range: Accelerometer ±8 ; ±15 ; ±40 g
Measurement Range: Magnetometer ±8 gauss
Operating Temperature -40 to +85 deg C
Size 120mm x 50mm x 53mm
Weight 320 gm
