Vertical Gyros (VG)

high-performance strapdown Vertical Gyro (VG) system that determines absolute orientation Pitch, Roll and relative Yaw for any device on which it is mounted. It’s tilt measurement is performed with high accuracy for both motionless and dynamic applications.

Inertial Labs is a designer, developer and manufacturer of position and orientation tracking systems. They produce a variety of the inertial sensors that are industry’s smallest at lowest cost.

Applications:

  • Human Motion Tracking
  • Real-time Immersive Training
  • Weapon Orientation
  • Gaming Systems
  • Robotics Navigation
  • Head Tracking
  • Motion Capture
  • Antenna/Platform Stabilization
  • Virtual and Augmented Reality
  • Training and Simulation
  • Unmanned Vehicles Navigation
  • Pedestrain Navigation
  • Movement Science
  • Artificial Horizon
  • Autopilot Systems
  • Human Input Devices
  • Inertial Aided GPS
  • Virtual Locomotion
  • Indoor Positioning

ProductsRange (Attitude(pitch,roll)/Gyro(angular)/SensorResolution (angular/sensor)ConnectorWeightSupply Voltage
Vertical Gyroscope±90°, ±180°/
±300° per sec/
±2g, ±6g
0.01°/
0.1-0.2 mg;
6-Pin Binder 718 (Female)70g+5.5V to +6.5V

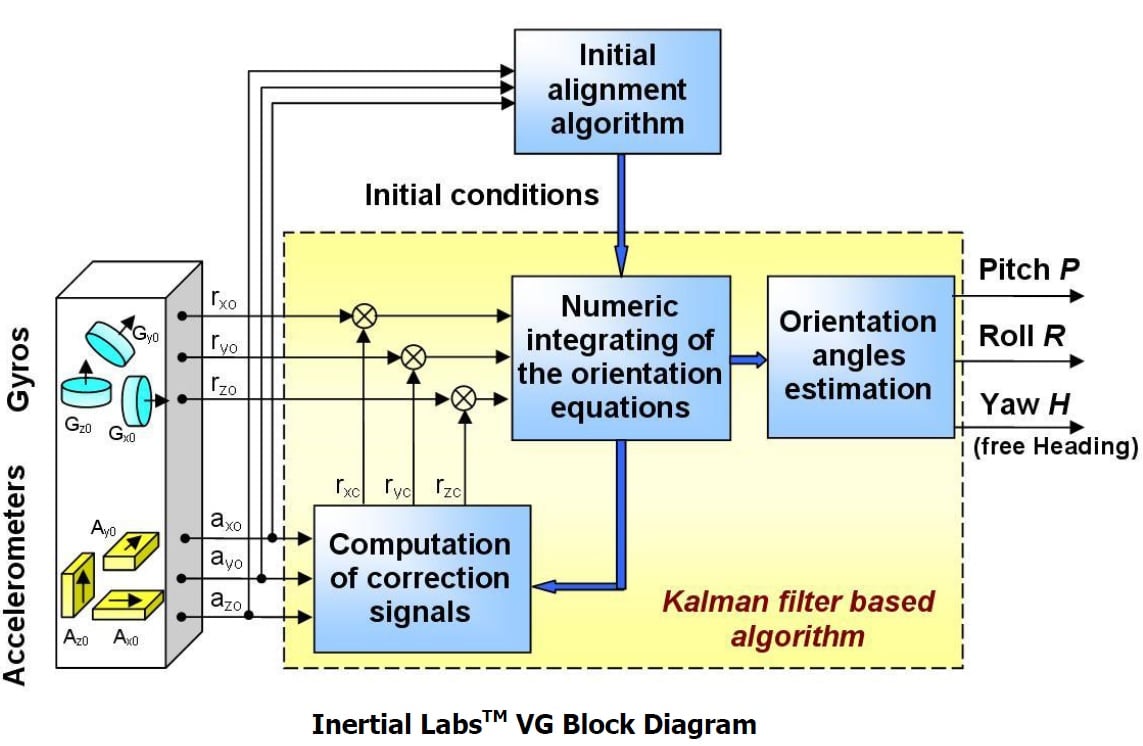

Vertical Gyro utilizes 3-axes each of precision accelerometers and gyroscopes to provide accurate Pitch, Roll and relative yaw of the device under measure. Integration of gyroscopes’ output provides high frequency, real-time measurement of the device rotation about all three rotational axes. Accelerometers measure absolute Pitch and Roll at VG initial alignment as well as providing ongoing corrections to gyroscopes during operation.

vg principle

  • Commercial
  • Military

For more information, CONTACT US now with your application details.
