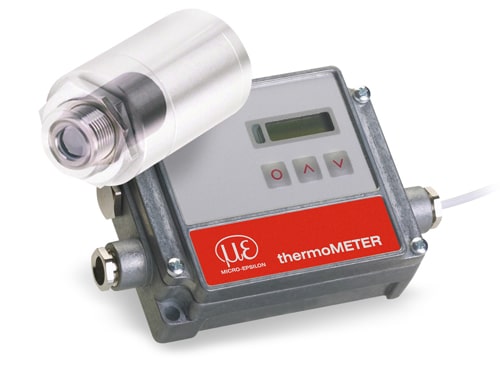

The thermoMETER CTM-4SF10-C3 is a high-speed infrared pyrometer well-suited for dynamic measurement applications in industrial environment. With a spectral range of 2.2 to 6 µm, the CTM-4 offers accurate measurement in applications such as temperature measurement of metals and non-metals, i.e ceramics or plastics. This high-speed pyrometer has an integrated USB interface output to facilitate easy data transfer to the PC for analysis. Users can also use the easy-to-use ConnectPlus software for easy setup and sensor adjustment.
- Measurement range: 0 to 500 °C
- Spectral range: 2.2 to 6 µm
- Optical resolution: 10:1
- Response time: 300 µs at 90% signal or 90µs at low signal
