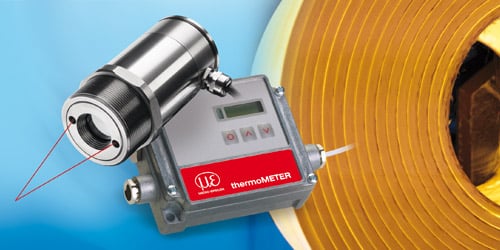

thermoMETER CTLaserM3 | Infrared sensor with laser sighting for measurement of metals and composite materials

The thermoMETER CTM3 is an infrared temperature sensor with laser sighting capability for temperature measurement of metals and composite materials. It operates at a short operating wavelength of between 2-3µm to compensate for the error in determining the value of object emissivity at high temperature. The CTLaserM3 can measure object temperature from as low as 50C. The laser is automatically switched off when the sensor operates at the ambient temperature above 50C.

Key features:

• Measurement range: 50C – 1800C
• Response time: 1ms
• Spectral range: 2-3 µm
• Optical resolution: 60:1 to 300:1
