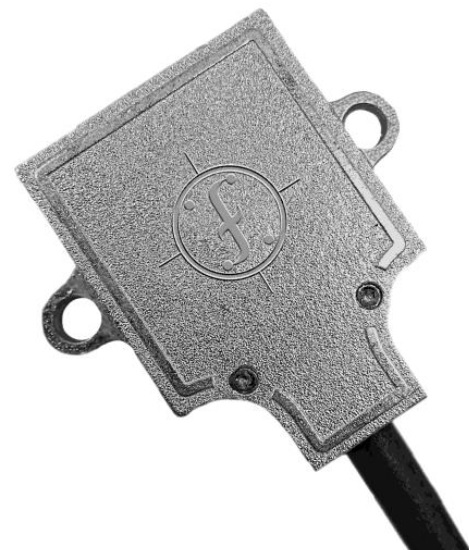

ON/OFF & Tilt Switches

Programmable ON/OFF switches for users requiring an output that switches at a specific angle trip point. These all-electronic switches contain no moving parts to wear out and can be easily configured to switch at wide range of trip angles at our factory or your facility.
The Fredericks Company manufacturers programmable ON/OFF switches for users requiring an output that switches at a specific angle trip point. These all-electronic switches contain no moving parts to wear out and can be easily configured to switch at wide range of trip angles at our factory or your facility.
ProductsRangeAccuracyRepeatabilityOutputOperating temperature
0729-1736-99 (dual axis)±1° to ±35°0.2°0.1°2A @ 30Vdc-35°C to +70°C
0729-1757-99 (single axis)±45°<0.2 arc minutes0.1°200mA Max.-40 ℃ to +70 ℃
0729-1758-99 (single axis)±1° to 45°< 0.2 arc minutes0.1°200mA Max.-40 ℃ to +70 ℃

The single axis programmable tilt switch incorporates an electrolytic tilt sensor and micro-controller technology. One of the special features is its ability to be field programmabled by the user. It provides a wide-angle trip range and a wide operating supply voltage range. There are 2 open collector outputs to indicate trip points. The unit will indicate which direction the unit is tilted and when the unit reaches the trip point. The centre set point can be at any angle within the specified range of the unit. The unit will retain the programmed trip points even when the power is removed. It can be reprogrammed as often as necessary for multiple applications.

Dual axis tilt switch has been designed with the ability to be pre-programmed via an RS232 link to be adaptable for many applications. These features can be pre-set by the factory to customer specifications or by the end product user. With one basic model all features can be pre-set such as – set trip angles, set zero position, set trip delay (on and off), set polarity of relay (normally on or off ), set hysteresis (return from trip point angle) and set filter value (eliminate vibrations). These values will be permanently saved to internal memory.

For more information, CONTACT US now with your application details.

Applications:

  • Tip-Over Switches
  • Tip-Over Protection
  • Crane Safety
  • Position Switch
  • Lift Platforms
  • Safety Switches
