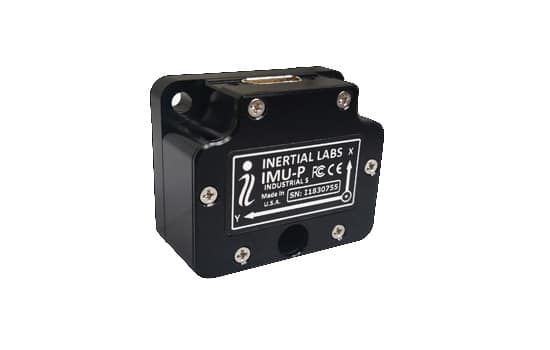

The IMU-P is an advanced, self-contained Industrial & Tactical grade Inertial Measurement Systems and Digital Tilt Sensor from Inertial Labs. The system consists of three-axis high grade accelerometers and tactical-grade MEMS gyroscope for measuring angular rates, linear accelerations, pitch & roll
This system’s configuration offers a high measurement accuracy for both dynamic and static applications. The concoction of the high-quality and latest MEMS sensors technology provides low noise, good repeatability and high reliability. The IMU-P sensor is also temperature compensated and fully calibrated while being mathematically aligned to the orthogonal coordinate system.
As the IMU-P has continuous built-in-test and configurable communications protocols, it is easy to use across integrated system applications. It also has a protection against electromagnetic interference and flexible power input requirements to suit a wide range of applications
This MEMS sensor technology finds its applications mostly in antenna & line stabilization systems, passengers trains acceleration, Motion Reference Units (MRU), Motion Control Sensors (MCS), Land vehicles navigation and motion analysis, UAV & AUV/ROV navigation and control, Buoy or Racing Boat Motion Monitoring, Gimbals, EOC/IR, platforms orientation and stabilization.
|PARAMETER||IMU-P (Tactical & Industrial)|
|Operating Temperature||-40 to +85 deg C|
|Size||39mm x 45mm x 22mm|
|Measurement Range: Gyroscope||±450; ±950; ±2000 deg/sec|
|Measurement Range: Accelerometer||± 8; ±15; ±40 g|
|Measurement Range: Inclinometer||±90/±180 deg|
