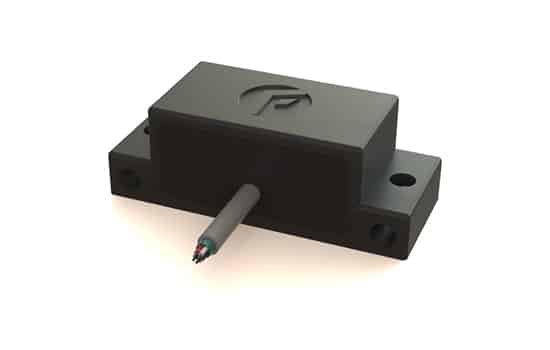

Fredericks 0711-0768-99 and 0719-1143-99 | single axis narrow range electrolytic tilt sensor
The 0711-0768-99 and 0719-1143-99 narrow-range electrolytic tilt sensor provides high accuracy and high resolution and repeatability position measurements in one axis. Since it is a passive sensor, it requires signal conditioning electronics to provide an output. The sensor can be integrated into a larger system and provides an extremely long service life. Some typical applications of the electrolytic tilt sensor include Geotechnical and geophysical monitoring, railway track monitoring, tool leveling and structural monitoring.
- Measuring range: -3° to +3°
- Operating temperature: -20 °C to 50 °C
- Repeatability: ±0.0008°
