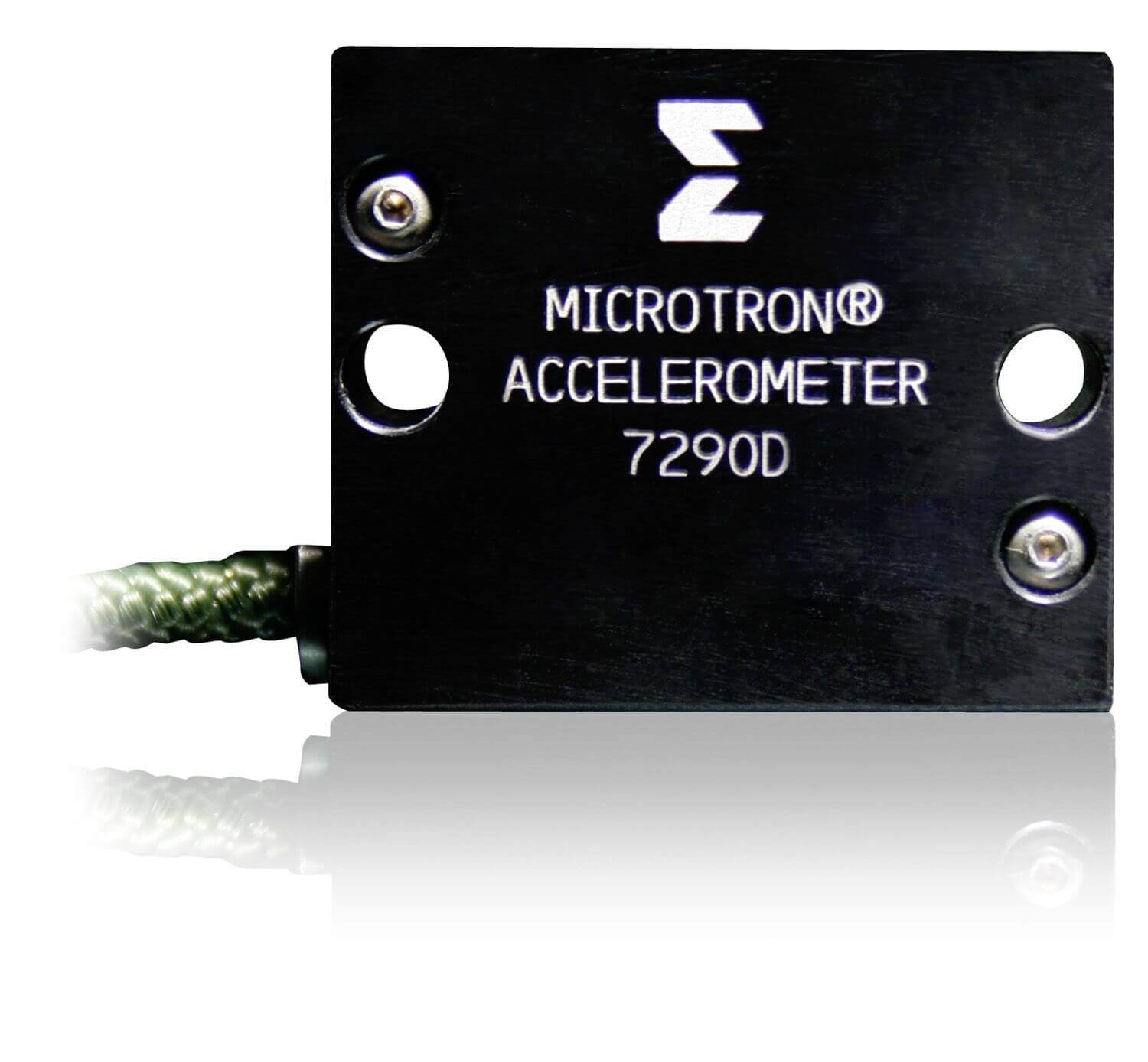

The Endevco 7290D accelerometer offers a high thermal stability and global accuracy which are typically required for measurement in challenging environment such as flight test applications. Featuring a patented variable capacitance sensing element, the accelerometer is capable to withstand high shock and acceleration loads. A custom signal conditioner to make the device operate with a nominal excitation of 8.0 Vdc to 30.0 Vdc is included in the accelerometer. There are no post-processing charges applicable since all the compensation and adjustments are incorporated within the unit. A Transducer Electronic Data Sheet (TEDS) is included with the accelerometer complying to IEEE 1451.4.
Key Features:
- Measurement range: 2 to 100 g
- Temperature range: -55˚C to +125˚C
- Weight: 15 grams (without cables)
- Frequency response: DC responsive to 5000 Hz
