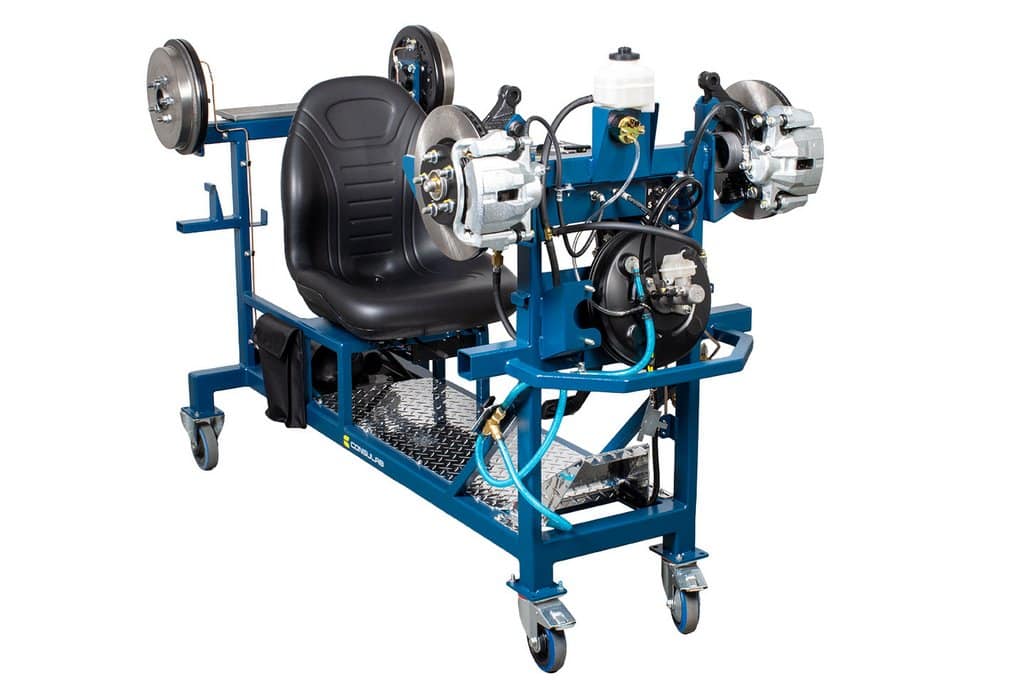

EM-123-TY05 Brake Trainer for Hydraulic Diagnosis

The EM-123-TY05 Brake Trainer for Hydraulic Diagnosis, based on a Toyota platform, is a comprehensive training tool for teaching and assessing brake service skills. Built with OEM components, multiple pedal sensations (soft, hard, spongy) can be reproduced, and a complete diagnosis be performed. Equipped with an integrated driver seat and hydraulic force gauges on all four wheels, trainer offers a practical, safe, and realistic experience for mastering modern braking systems.

• Lockable fault box with graphical representation of each fault
• Toyota OEM components: master cylinder, booster, pedal, disc and drum brakes
• Built-in driver seat for realistic pedal feel
• Hydraulic pressure gauges at each wheel
• Disc or drum braking on all four wheels with booster
• NOTE: Discs, drums, wheel cylinders, calipers, pads and master cylinder are new. All other OEM components are recycled from actual vehicles
• 120 VAC, 7.5 A power supply included
• Ability to introduce air into the system with an integrated fault and purge the system
• Simulation of common problems: internal master cylinder leak, blocked or restricted hose
• Functional vacuum pump with adjustable restriction
• Non-hazardous brake fluid (DOT 4 brake fluid)
• Sturdy powder coated metal stand with two locking swivel and two fixed casters for easy transport
• Trainer can fit through a standard 30” door opening
